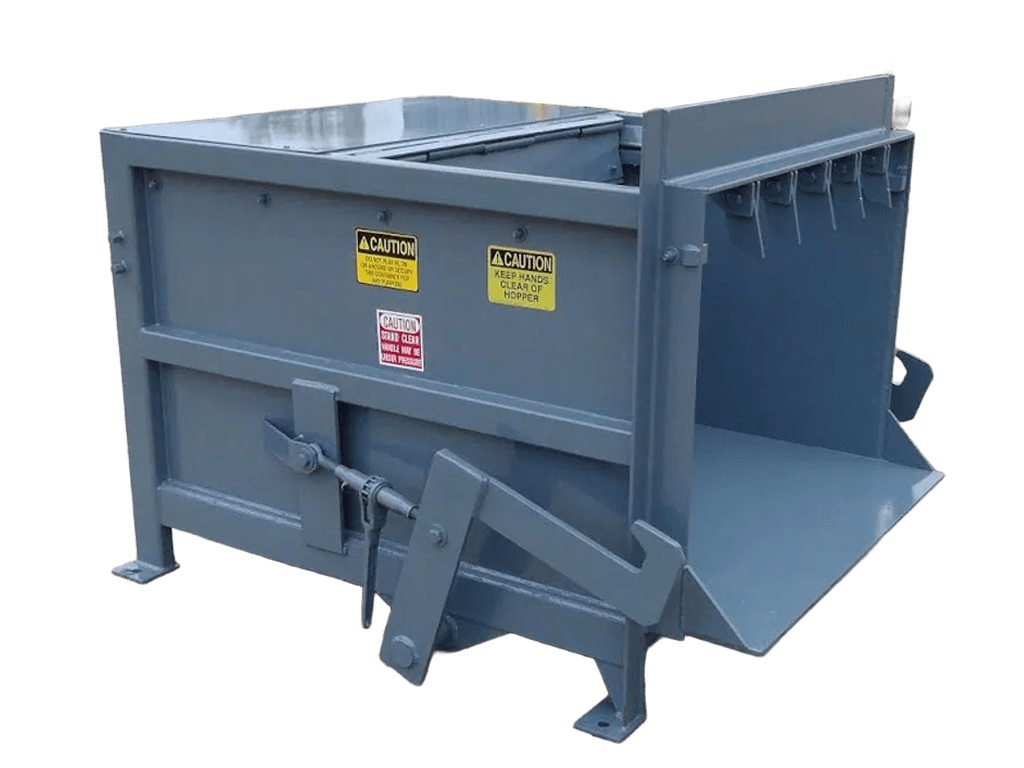

1 Yard Stationary Compactor
Small footprint. Exceptional compaction force. Quiet operation.
Ideally suited for retail, hotel, and healthcare applications.
- Red Enamel
- Blue Enamel
- Maroon Enamel
- Medium Blue
- Armor Yellow
- Allied Blue
- Nedland Gray
- U.S. Waste Green
- Chicagoland Gray
- Forest Green
- Brown Cocoa Enamel
- Shamrock Green
- Dark Brown
- Orange
- Black Enamel
- Beige
Your space constraints may dictate a stationary compactor with a small footprint—but that doesn’t mean you have to sacrifice when it comes to compacting power.
- Same power as a stationary compactor twice its size
- Quietest unit in the industry thanks to UHMW nylon-wrapped rams
- Lowest-maintenance-cost design, including bypass cylinders for extended life
- Industry’s highest quality UL and ETL-listed components
- Industry’s most advanced electrical and hydraulic system
- Resists chips, scratches, and fading with phosphate-cleaned and powder-coat primed and painted interior and exterior surfaces
- Customize the unit to suit your unique application
- Exceptional service—before and after the sale
Cut your garbage hauling costs. This 1 cubic yard compactor is quality-built, quiet, safe and simple to operate.
Compactor features:
- Replaceable UHMW polyethylene wear bars on all sides and bottoms
- Bypass cylinders
- Removable rear access panel
- Weatherproof control panel and power pack
- Container guide rails
Electric and hydraulic features:
- Controller power unit (PLC)
- Automatic shutdown with auto safety retract
- E-stop button
- Auto/manual selector
- Key lock on/off switch
- Automatic single cycle
- Multi-cycle timer
- Reverse button
- Remote control
- 80% and 100% full lights
- Fluid level and temp gauge
- Fluid-filled pressure gauge
- Inlet fluid strainer
- Left or right side hydraulic and electrical connections
- Low oil sensor shutdown
- Submersible power unit
- Synthetic biodegradable hydraulic fluid
All units phosphate cleaned and powder-coat primed and painted on all interior and exterior surfaces to resist chips, scratches, and fading.
This stationary compactor conforms to all ANSI Z 245.2 safety standards.

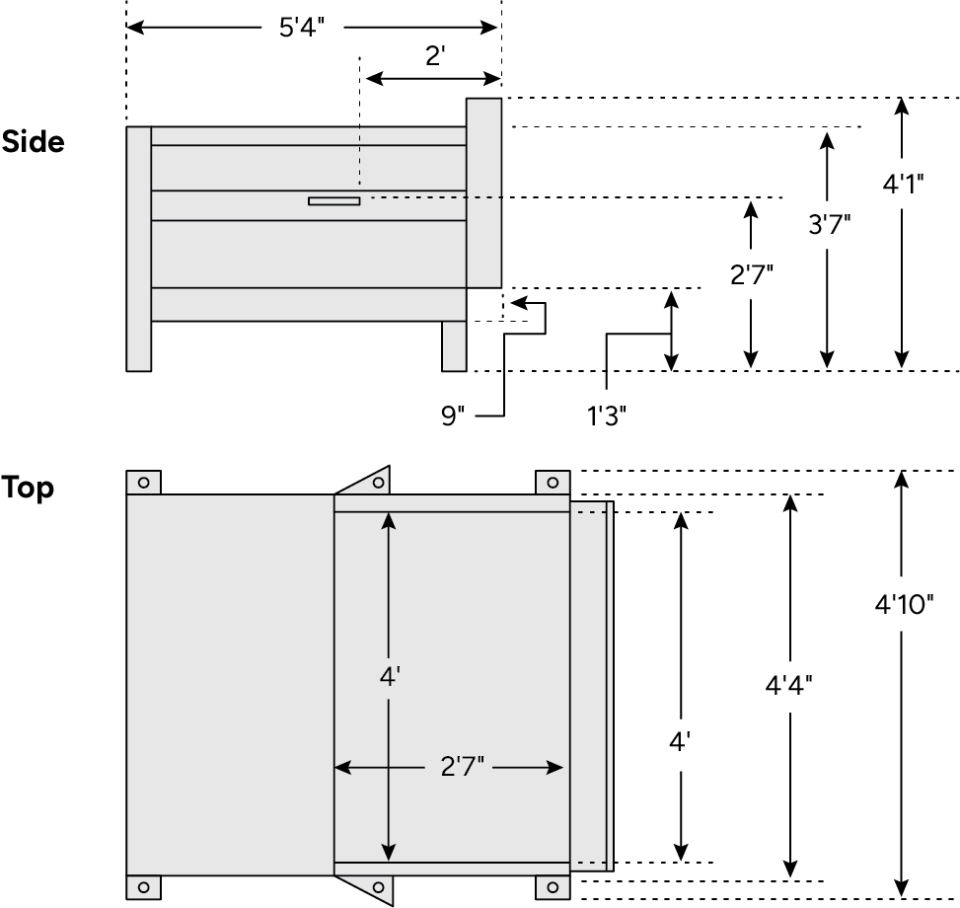

| Model | NC-100 |
| Compactor Capacity | 1 cu yd |
| Length | 5’4″ |
| Width | 4’10” |
| Height | 4’1″ |
| Loading Height | 3’7″ |
| Approx. Weight | 3,400 lbs |
| Compactor Floor | 3/8″ steel AR plate with 3″ structural channels |
| Compactor Sides | 1/4″ steel plate with 3″ x 2″ x 1/4″ structural steel tubing |
| Ram Face & Bottom | 3/8″ AR steel plate |
| Platen Area | 3′ x 2’7-1/2″ x 4′ |
| Charge Opening | 2’7″ x 4′ |
| Ram Penetration | 8″ |
| Breaker Bar | 6″ x 6″ x 1/2″ with retaining teeth |
| Twin Bypass Cylinders | 2-1/2″ x 3′ x 1-1/2″ |
| Hydraulic Cylinder Mounts | 1/2″ steel plate |
| Hydraulic Hose | 15′ |
| Hydraulic Fluid | Biodegradable |
| Wear Bars | Replaceable 1/2″ UHMW polyethylene |
| Line Pressure | 2,000 psi |
| Max Line Pressure | 2,500 psi |
| Max Ram Force | 19,500 lbs |
| Cycle Time | 40 sec |
| Fluid Capacity | 35 gal |
| Pump | 5 gpm |
| Remote Control | 15′ |
| Motor | 5 hp/tri-volt, 3-phase or single-phase inverter |
(All measurements are outside dimensions)

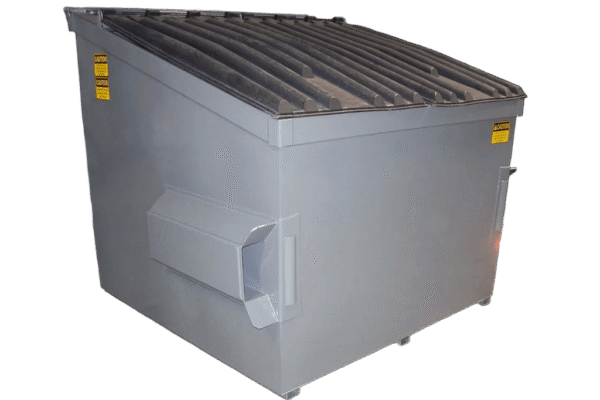

Compatible front load receiver containers:
| Model | Volume |
|---|---|
| N-400FL | 4 cu yd |
| N-600FL | 6 cu yd |
| N-800FL | 8 cu yd |

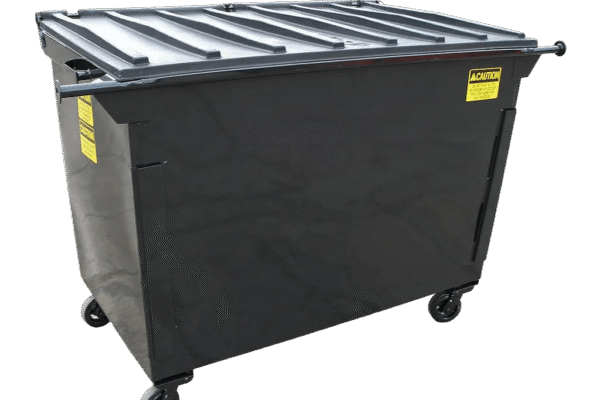

Compatible rear load receiver containers:
| Model | Volume |
|---|---|
| N-400RL | 4 cu yd |
| N-600RL | 6 cu yd |
| N-800RL | 8 cu yd |
We’re happy to help you customize your stationary compactor.
Options include:
- Cart dumper system
- Container guide rails
- Enclosed doghouse with door and interlock
- Fluid reservoir heater
- Fullness monitoring system
- Open hopper for loading dock or ground loading
- Photo eye
- Safety beacon
- Side-loading hoppers
- Through-the- wall chutes
We believe in the compactors we’ve designed and manufactured. It’s why we can confidently offer the industry’s best warranty.
Folks just like you have trusted us — for decades
You might also be interested in

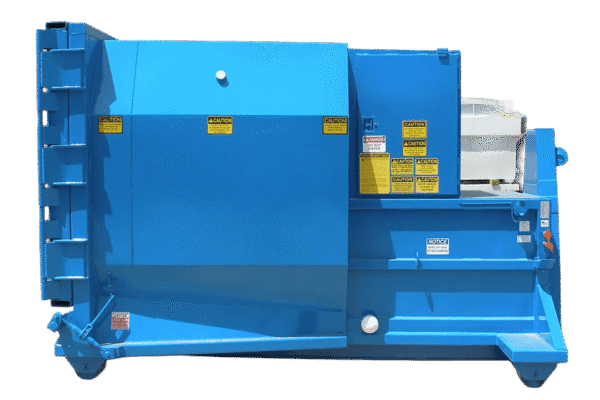

1 Yard Self Contained Compactor (10 Yard)
