16,000 lb GVWR Roll Off Trailer
Small trailer, long on swagger. That’s EZrolloff .
This roll off trailer gives you big muscle, yet it’s still small enough that you won’t need a CDL to operate it. Ideal for start-up dumpster rental businesses.
- Red Enamel
- Blue Enamel
- Maroon Enamel
- Medium Blue
- Armor Yellow
- Allied Blue
- Nedland Gray
- U.S. Waste Green
- Chicagoland Gray
- Forest Green
- Brown Cocoa Enamel
- Shamrock Green
- Dark Brown
- Orange
- Black Enamel
- Beige
Starting a dumpster rental business? Then you need to minimize surprises and get more out of your investments. Nedland roll off trailers do just that.
- Realize exceptional ROI with a trailer that’s built to last and holds its resale value
- Cut costs and boost uptime with the lowest cost maintenance design
- Buy new or used dumpsters from nearly any manufacturer with Nedland’s commitment to industry-standard rails, unlike some
- Gain peace of mind with the industry’s best warranty and customer care—before and after the sale
Widely recognized as the leading roll-off trailer on the market, EZrolloff delivers the high-quality construction you’d expect from the big trucks. Compare roll off trailers.
We don’t cut corners. We know the safety, reliability, and longevity of our roll-off trailers are critical to your business success. Here’s how we deliver you exceptional value:
- Reeving cylinder cable system with a UHMW slide pulley block and tackle set-up to ensure cable never comes in contact with itself for reduced maintenance and safe, quiet operation
- 13 HP Honda engine with 2-stage pump for exceptional pull performance
- 4-function wireless remote with back-up manual controls for greater control over where dumpsters are placed
- Manual override to continue operating the roll-off system without the hand pendant
- Counterbalanced safety lock valves directly mounted on hydraulic cylinders for improved worker safety
- Tipp frame and hydraulic tongue jack to lift all 4 tires off the ground for easy maintenance
- Recessed grease zerks on every shaft make for easy maintenance, ensuring minimal-to-non-existent breakage
- Bronze bushings with figure-8 grease grooves on all rail rollers and sheaves to grease the entire shaft in a single rotation of the part
- Electric solenoid valves with LED light indicators to easily diagnose issues in the uncommon event of a malfunction
- Oil bath hubs to easily monitor and maintain fluid levels
- Oil filter and fluid temperature gauges for proper maintenance
- Bolted-on torflex axles for a smooth ride and easy replacement
- Bolted-on fenders for easy replacement
- Powder-coat primed and painted to resist chips, scratches, and fading
- Pintel or detachable gooseneck hitch for added towing flexibility
- Synthetic biodegradable hydraulic oil to support your commitment to environmentally-friendly operation
Dig into the details. We challenge you to find a better-built trailer on the market.
| GVWR | 16,000 lbs |
| Approx Weight | 4,530 lbs |
| Length | 21’9″ |
| Width | 8’5″ (101″) |
| Dumpster Style | Tub |
| Max Dumpster Capacity | 25 cu yd |
| Max Dumpster Length | 14′ |
| Hoist Frame | 6″ x 3″ x 3/8″ wall tube |
| Main Frame | 5″ x 3″ x 3/8″ wall tube |
| Front Stops | 5/8″ plate |
| Safety Lock | Automatic mechanical |
| Fenders | Diamond plate, bolted attachment |
| Side Steps | Tread plate |
| Hoist Cylinder | (2) 4″ x 4′ x 2″ chrome rods |
| Winch Cylinder | (2) 4″ x 4′ x 2″ nitro rods |
| Slide Pulley Block | UHMW nylon |
| Cable | 5/8″ |
| Outside Rollers | 3″ O.D. w/bronze bearing |
| Cable Sheaves | 8″ O.D. w/bronze bearing |
| Cable Travel | 16′ |
| Hinge Shaft | 1-1/2″ with grease zerk |
| Dump Angle | 51 degrees |
| Approx Operating Times | Down 20 sec, on 50 sec, off 45 sec |
| Container Locks | Dual, front and back; rear ratchet tie-down |
| Hydraulics | Electric over hydraulic with manual override; safety lock valves on all hydraulics |
| Hydraulic Oil | Biodegradable |
| Controller | 4-function wireless remote with back-up manual controls |
| Jack | Hydraulic front tongue, wireless remote controlled |
| Hitch | Pintle or gooseneck |
| Engine | 13 HP Honda engine; electric start, backup recoil start, 10/2 gpm, pump at 2000 psi |
| Pump | 10/2 gpm |
| Motor Cover | Aluminum diamond plate |
| Axles | (2) Dexter Torflex, 8,000 lbs with electric brakes and oil bath hubs |
| Brakes | Electric |
| Tires | 235/75R 17.5 18-Ply steel belt radial |
| Safety Chains | (2) Class 4, 15,000 lb-rated chains |
| Lighting | LED |
| Wiring | Inside main rail tubes in protective Lomax conduit |
| Finish | All metal surfaces sandblasted, Zinc-primed, and powder coat gloss black |

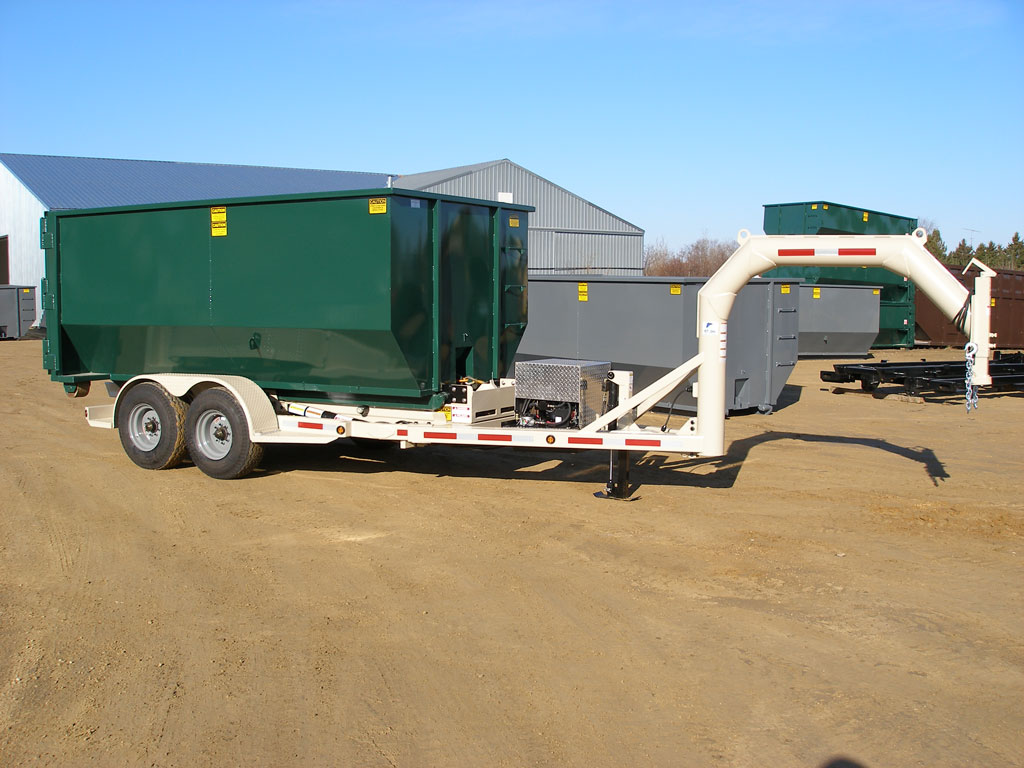

A gooseneck attachment will add 7′ to the overall length of your trailer and approximately 750 lbs.
Compatible dumpsters
| Model | Volume | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| EZ-6C | 6 cu yd | 9’6″ | 8’5″ (101″) | 3′ | 1,330 lbs |
| EZ-8C | 8 cu yd | 9’6″ | 8’5″ (101″) | 4′ | 1,545 lbs |
| EZ-10C | 10 cu yd | 9’6″ | 8’5″ (101″) | 4’10” | 1,720 lbs |
| EZ-10C-14 | 10 cu yd | 13’6″ | 8’5″ (101″) | 3’9″ | 2,075 lbs |
| EZ-15C | 15 cu yd | 13’6″ | 8’5″ (101″) | 4’8″ | 2,245 lbs |
| EZ-20C | 20 cu yd | 13’6″ | 8’5″ (101″) | 6’3″ | 2,580 lbs |
| EZ-25C | 25 cu yd | 13’6″ | 8’5″ (101″) | 7’5″ | 2,760 lbs |
Compatible chipper boxes
| Model | Volume | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| EZ-10CB | 10 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-15CB | 15 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-20CB | 20 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-25CB | 25 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
*Chipper boxes are custom-built to your specifications
Extend the functionality of your trailer for even greater flexibility and ease of use.
- Detachable gooseneck hitch
- Roll-off dumpsters
- Winch-operated dumpster lids
- Semi-automatic tarping system

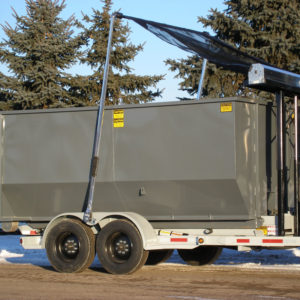

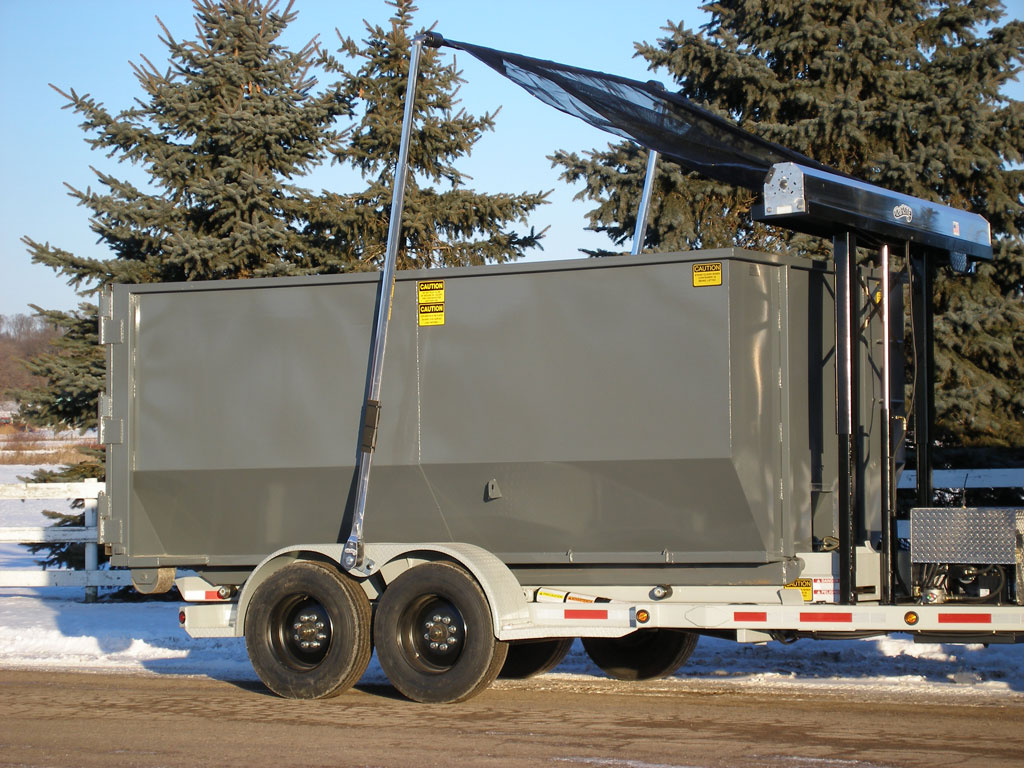

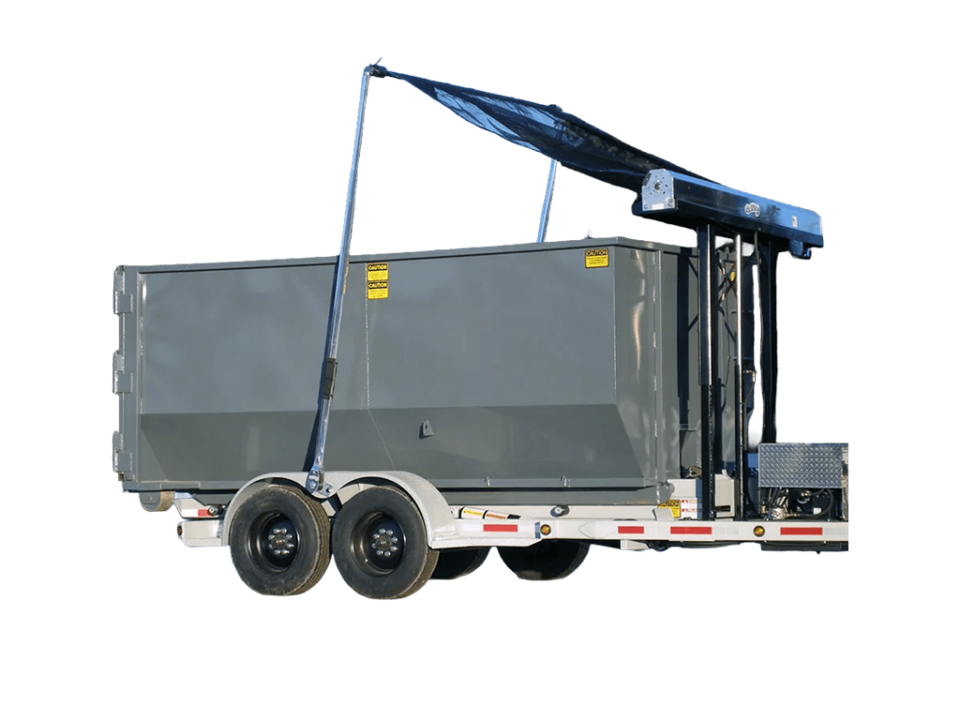

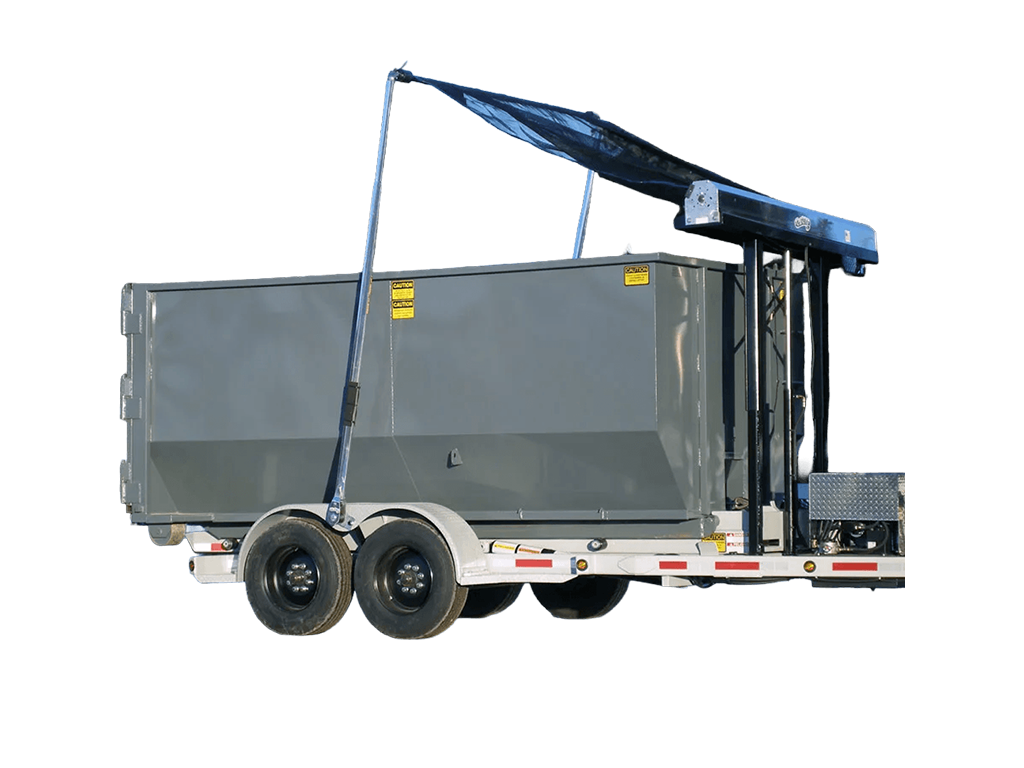

- Fully-automatic tarping system with wireless remote control
- Roll-off flatbed attachment
EZrolloff systems are built to last—and we stand behind them. That’s why each roll-off trailer is backed by the industry’s leading warranty.
