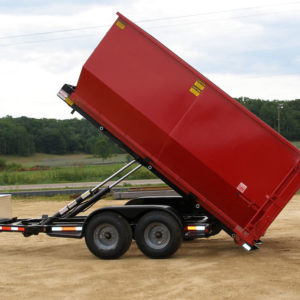

20,000 lb GVWR Roll Off Hoist
Convert your truck. Boost your business.
Exceptional power and longevity. That’s EZrolloff. This roll off hoist is ideal for rental dumpster, construction, home renovation, and landscaping businesses.
Grow your dumpster rental business—or bring your construction or landscaping waste management in-house. Widely recognized as the leading roll off hoists on the market, EZrolloff delivers high-quality construction, exceptional power, and ease of operation.
- Realize superior ROI with a quality-built hoist that lasts longer and helps your roll off truck hold its resale value
- Cut costs and boost uptime with the lowest cost maintenance design
- Buy new or used dumpsters from nearly any manufacturer with Nedland’s commitment to industry-standard rails, unlike some
- Gain peace of mind with the industry’s best warranty and customer care—before and after the sale
We don’t cut corners. We know the safety, reliability, and longevity of our roll-off hoist is critical to your business success. Here’s how we deliver you exceptional value:

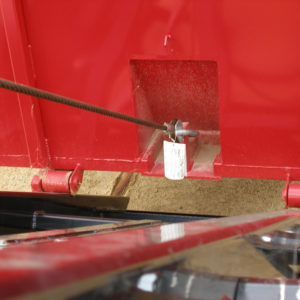

- Reeving cylinder cable system with a UHMW slide pulley block and tackle set-up to ensure cable never comes in contact with itself for reduced maintenance and safe, quiet operation
- 13 HP Honda engine with 2-stage pump for exceptional pull performance
- 4-function wireless remote with back-up manual controls for greater control over where dumpsters are placed
- Manual override to continue operating the roll-off system without the hand pendant
- Counterbalanced safety lock valves directly mounted on hydraulic cylinders for improved worker safety
- Tipp frame and hydraulic tongue jack to lift all 4 tires off the ground for easy maintenance
- Recessed grease zerks on every shaft make for easy maintenance, ensuring minimal-to-non-existent breakage
- Bronze bushings with figure-8 grease grooves on all rail rollers and sheaves to grease the entire shaft in a single rotation of the part
- Electric solenoid valves with LED light indicators to easily diagnose issues in the uncommon event of a malfunction
- Oil bath hubs to easily monitor and maintain fluid levels
- Oil filter and fluid temperature gauges for proper maintenance
- Bolted-on torflex axles for a smooth ride and easy replacement
- Bolted-on fenders for easy replacement
- Powder-coat primed and painted to resist chips, scratches, and fading
- Pintel or detachable gooseneck hitch for added towing flexibility
- Synthetic biodegradable hydraulic oil to support your commitment to environmentally-friendly operation
Dig into the details. We challenge you to find a better-built roll off hoist on the market.
| GVWR | 20,000 lbs |
| Approx Weight | 3,500 lbs |
| Length | 14’6″ |
| Dumpster Style | Tub or Rectangle |
| Max Dumpster Capacity | 25 cu yd |
| Max Dumpster Length | 14′ |
| Hoist Frame | 6″ x 3″ x 3/8″ wall tube |
| Front Stops | 5/8″ plate |
| Safety Lock | Automatic mechanical |
| Fenders | Rotationally-molded poly, bolted attachment |
| Hoist Cylinder | (2) 4″ x 4′ x 2″ chrome rods |
| Winch Cylinder | (2) 4″ x 4′ x 2″ nitro rods |
| Slide Pulley Block | UHMW nylon |
| Cable | 5/8″ |
| Outside Rollers | 3″ O.D. w/bronze bearing |
| Cable Sheaves | 8″ O.D. w/bronze bearing |
| Cable Travel | 16′ |
| Hinge Shaft | 1-1/2″ with grease zerk |
| Dump Angle | 51 degrees |
| Approx Operating Times | Down 15 sec, on 46 sec, off 37 sec |
| Container Locks | Dual, front and back; rear ratchet tie-down |
| Hydraulic Oil | Biodegradable |
| Controller | 4-function wireless remote with back-up manual controls |
| Jack | Hydraulic front tongue, wireless remote controlled |
| Hitch | Pintle |
| Lighting | LED |
| Wiring | Inside main rail tubes in protective Lomax conduit |
| Finish | All metal surfaces sandblasted, Zinc-primed, and powder coat gloss black |
Compatible dumpsters
| Model | Volume | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| EZ-6C | 6 cu yd | 9’6″ | 8’5″ (101″) | 3′ | 1,330 lbs |
| EZ-8C | 8 cu yd | 9’6″ | 8’5″ (101″) | 4′ | 1,545 lbs |
| EZ-10C | 10 cu yd | 9’6″ | 8’5″ (101″) | 4’10” | 1,720 lbs |
| EZ-10C-14 | 10 cu yd | 13’6″ | 8’5″ (101″) | 3’9″ | 2,075 lbs |
| EZ-15C | 15 cu yd | 13’6″ | 8’5″ (101″) | 4’8″ | 2,245 lbs |
| EZ-20C | 20 cu yd | 13’6″ | 8’5″ (101″) | 6’3″ | 2,580 lbs |
| EZ-25C | 25 cu yd | 13’6″ | 8’5″ (101″) | 7’5″ | 2,760 lbs |
Compatible chipper boxes
| Model | Volume | Length | Width | Height | Weight |
|---|---|---|---|---|---|
| EZ-10CB | 10 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-15CB | 15 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-20CB | 20 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
| EZ-25CB | 25 cu yd | 13’6″ | 8’5″ (101″) | Variable* | Variable* |
*Chipper boxes are custom-built to your specifications
Extend the functionality of your roll-off truck for even greater flexibility and ease-of-use.
- Roll-off flatbed attachment
- Roll-off dumpsters
- Winch-operated dumpster lids
- Fully-automatic tarping system with wireless remote control
Our hoists are built to last—and we stand behind them. Each Nedland roll-off hoist is backed by the industry’s leading warranty.
