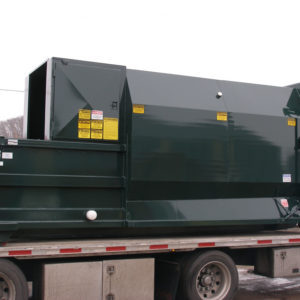

The quiet NSC-200-20 self-contained compactor delivers exceptional power and longevity.
Ideal for restaurant, motel, healthcare facility, and other commercial applications.
Handled incorrectly, your wet waste products can create a real stink. That’s why healthcare, retail, and hospitality building managers turn to our commercial-grade wet trash compactors.
With your garbage tightly sealed within a self-contained compactor, you eliminate offensive odors—and cut waste hauling costs while you’re at it.
Not quite sure where you can squeeze in a compactor? No worries. This moderately sized wet waste compactor was designed with tight space constraints in mind.
Our 2 yard wet waste compactor is built to last:
Our electrical and hydraulic features are the best in the industry:
Our wet waste compactor container construction is top-notch:
This wet waste compactor conforms to all ANSI Z 245.2 safety standards.
Here’s what you need to know about our 2 yard wet waste compactors:
| Model | NSC-200-20 |
| Length | 18'4" |
| Width | 8'5" |
| Height | 8'6" |
| Loading Height | 4' |
| Approx. Weight | 10,300 lbs | Compactor Capacity | 2 cu yd |
| Compactor Floor | 3/8" AR steel plate with 3" structural channels |
| Compactor Sides | 1/4" steel plate sides with 4" x 2" x 1/4" & 6" x 2" x 1/4" structural steel tubing with 6" channel |
| Container Capacity | 20 cu yd |
| Container Floor | 3/16" steel plate with 6" x 2" x 1/4" structural steel tubing rails with 1/2" x 2" steel bottom wear bars |
| Container Sides & Top | 3/16" steel plate |
| Container Width | Tapered front to rear |
| Full Door Seal | 3/4" thick |
| Ram Face & Bottom | 3/8" AR steel plate | Platen Area | 5' x 3'8" x 3' |
| Charge Opening | 3'6" x 5" |
| Ram Penetration | 1' |
| Breaker Bar | 6" x 6" x 1" with retaining teeth |
| Twin Bypass Cylinders | 4" x 3'6" x 2-1/2" |
| Hydraulic Cylinder Mounts | 6" x 6" x 1/2" |
| Hydraulic Fluid | Biodegradable |
| Wear Bars | Replaceable 1/2" UHMW polyethylene |
| Line Pressure | 2,000 psi |
| Max Line Pressure | 2,500 psi |
| Max Ram Force | 63,000 lbs |
| Cycle Time | 45 sec |
| Fluid Capacity | 35 gal |
| Pump | 10-1/2 gpm |
| Motor | 10 HP 3-phase or single phase inverter |
(All measurements are outside dimensions)
