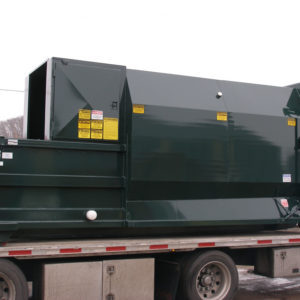

2 Yard Self-Contained Compactor with 20 Cubic Yard Container

2 Yard Self Contained Compactor (20 Yard Container)

The quiet NSC-200-20 self-contained compactor delivers exceptional power and longevity.

Ideal for restaurant, motel, healthcare facility, and other commercial applications.

Get a quote

Steel Product Color

Clear

Category: Self-Contained Compactors Tags: Retail, Wet trash compactor

Handled incorrectly, your wet waste products can create a real stink. That’s why healthcare, retail, and hospitality building managers turn to our commercial-grade wet trash compactors.

With your garbage tightly sealed within a self-contained compactor, you eliminate offensive odors—and cut waste hauling costs while you’re at it.

Not quite sure where you can squeeze in a compactor? No worries. This moderately sized wet waste compactor was designed with tight space constraints in mind.

Our 2 yard wet waste compactor is built to last:

1/2" Steel AR plate floor with 3" structural channels
1/4" steel plate sides with 4" x 2" x 1/4" & 6" x 2" x 1/4" structural steel tubing with 6" channel
Breaker bar 6" x 6" x 1" with retaining teeth
6" x 6" x 1/2" hydraulic cylinder mounts
6" fluid sump with 4" drain
Replaceable 1/2" UHMW polyethylene wear bars on ram sides, tops and bottoms for a smooth, quiet and near frictionless operation
Weatherproof control panel and power pack
Removable rear and top access panels
Synthetic biodegradable hydraulic oil
Primed and painted on all interior and exterior surfaces to resist chips, scratches, and fading

Our electrical and hydraulic features are the best in the industry:

Controlled power unit, or PLC
E-stop button
Automatic single cycle
Auto/manual selector
Key lock on/off switch
Low oil sensor shutdown
Multi cycle
80%-100% full lights
Automatic shutdown with auto safety retract
15' remote
Fluid filled pressure gauge
Inlet fluid strainer
15' Hydraulic hoses
Left or right hydraulic connections

Our wet waste compactor container construction is top-notch:

3/16" steel plate floor with 6" x 2" x 1/4" structural steel tubing rails with 1/2" x 2" steel bottom wear bars
3/16" steel plate side, roof and door
Full 3/4" thick door seal
Side and bottom ratchet latch door hinges with grease fittings
Double end pick-up (standard with outside rail cable pull)
Tapered width from 80" at compactor to 88" at door (inside dimensions)
Exclusive side or bottom ratchet door and latch system with heavy duty hinges and grease fittings

This wet waste compactor conforms to all ANSI Z 245.2 safety standards.

Here’s what you need to know about our 2 yard wet waste compactors:

Model	NSC-200-20
Length	18'4"
Width	8'5"
Height	8'6"
Loading Height	4'
Approx. Weight	10,300 lbs
Compactor Capacity	2 cu yd
Compactor Floor	3/8" AR steel plate with 3" structural channels
Compactor Sides	1/4" steel plate sides with 4" x 2" x 1/4" & 6" x 2" x 1/4" structural steel tubing with 6" channel
Container Capacity	20 cu yd
Container Floor	3/16" steel plate with 6" x 2" x 1/4" structural steel tubing rails with 1/2" x 2" steel bottom wear bars
Container Sides & Top	3/16" steel plate
Container Width	Tapered front to rear
Full Door Seal	3/4" thick
Ram Face & Bottom	3/8" AR steel plate
Platen Area	5' x 3'8" x 3'
Charge Opening	3'6" x 5"
Ram Penetration	1'
Breaker Bar	6" x 6" x 1" with retaining teeth
Twin Bypass Cylinders	4" x 3'6" x 2-1/2"
Hydraulic Cylinder Mounts	6" x 6" x 1/2"
Hydraulic Fluid	Biodegradable
Wear Bars	Replaceable 1/2" UHMW polyethylene
Line Pressure	2,000 psi
Max Line Pressure	2,500 psi
Max Ram Force	63,000 lbs
Cycle Time	45 sec
Fluid Capacity	35 gal
Pump	10-1/2 gpm
Motor	10 HP 3-phase or single phase inverter
