Serious hauling swagger. The largest in the Nedland EZrolloff line, the EZ24TR model roll off trailer delivers unbeatable power and longevity. Ideal for rental dumpster, construction, home renovation, and landscaping businesses moving heavy loads.
Widely recognized as the leading roll-off trailers on the market, EZrolloff delivers the high-quality construction you’d expect from the big trucks.
Realize superior ROI with a trailer that lasts longer and holds its resale value
Cut costs and boost uptime with the lowest cost maintenance design
Service dumpsters from roll-off trailers or large roll-off trucks
Buy dumpsters from nearly any manufacturer with Nedland’s commitment to industry-standard rails, unlike some
Gain peace of mind with the industry’s best warranty and customer care
This beast of a trailer has the guts you need to power your growing business. Just keep in mind that you’ll need a CDL to operate it.
“You won’t find a better roll-off trailer. 4 years later, it still looks like the day I picked it up. Not even a burnt-out light bulb.”
– Grant Wagner, ADA Feed & Seed
We don't cut corners. We know the safety, reliability, and longevity of our roll-off trailers is critical to your business success.
Here's how we deliver you exceptional value:
Reeving cylinder cable system with a UHMW slide pulley block and tackle set-up to ensure cable never comes in contact with itself for reduced maintenance and safe, quiet operation
13 HP Honda engine with 2-stage pump for exceptional pull performance
4-function wireless remote with back-up manual controls for greater control over where dumpsters are placed
Manual override to continue operating the roll-off system without the hand pendant
Counterbalanced safety lock valves directly mounted on hydraulic cylinders for improved worker safety
Tipp frame and hydraulic tongue jack to lift all 4 tires off the ground for easy maintenance
Recessed grease zerks on every shaft make for easy maintenance, ensuring minimal-to-non-existent breakage
Bronze bushings with figure-8 grease grooves on all rail rollers and sheaves to grease the entire shaft in a single rotation of the part
Electric solenoid valves with LED light indicators to easily diagnose issues in the uncommon event of a malfunction
Oil bath hubs to easily monitor and maintain fluid levels
Oil filter and fluid temperature gauges for proper maintenance
Bolted-on torflex axles for a smooth ride and easy replacement
Bolted-on fenders for easy replacement
Powder-coat primed and painted to resist chips, scratches, and fading
Pintel or detachable gooseneck hitch for added towing flexibility
Synthetic biodegradable hydraulic oil to support your commitment to environmentally-friendly operation
Dig into the details. We challenge you to find a better-built trailer on the market.
GVWR
24,000 lbs
Approx Weight
6,190 lbs
Length
21'9"
Width
8'5" (101")
Dumpster Style
Tub
Max Dumpster Capacity
25 cu yd
Max Dumpster Length
14'
Hoist Frame
6" x 3" x 3/8" wall tube
Main Frame
5" x 3" x 3/8" wall tube
Front Stops
5/8" plate
Safety Lock
Automatic mechanical
Fenders
Diamond plate, bolted attachment
Side Steps
Tread plate
Hoist Cylinder
(2) 4" x 4' x 2" chrome rods
Winch Cylinder
(2) 4" x 4' x 2" nitro rods
Slide Pulley Block
UHMW nylon
Cable
5/8"
Outside Rollers
3" O.D. w/bronze bearing
Cable Sheaves
8" O.D. w/bronze bearing
Cable Travel
16'
Hinge Shaft
1-1/2" with grease zerk
Dump Angle
51 degrees
Approx Operating Times
Down 20 sec, on 50 sec, off 45 sec
Container Locks
Dual, front and back; rear ratchet tie-down
Hydraulics
Electric over hydraulic with manual override; safety lock valves on all hydraulics
Hydraulic Oil
Biodegradable
Controller
4-function wireless remote with back-up manual controls
Jack
Hydraulic front tongue, wireless remote controlled
Hitch
Pintle or gooseneck
Engine
13 HP Honda engine; electric start, backup recoil start
Pump
10/2 gpm, pump at 2000 psi
Motor Cover
Aluminum diamond plate
Axles
(2) Dexter Torflex, 12,000 lbs with electric brakes and oil bath hubs
Brakes
Electric
Tires
235/75R 17.5 18-Ply steel belt radial
Safety Chains
(2) Class 4, 15,000 lb-rated chains
Lighting
LED
Wiring
Inside main rail tubes in protective Lomax conduit
Finish
All metal surfaces sandblasted, Zinc-primed, and powder coat gloss black

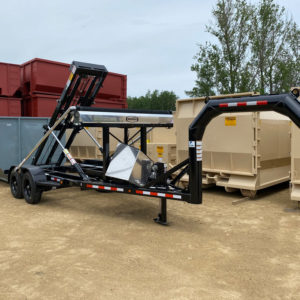

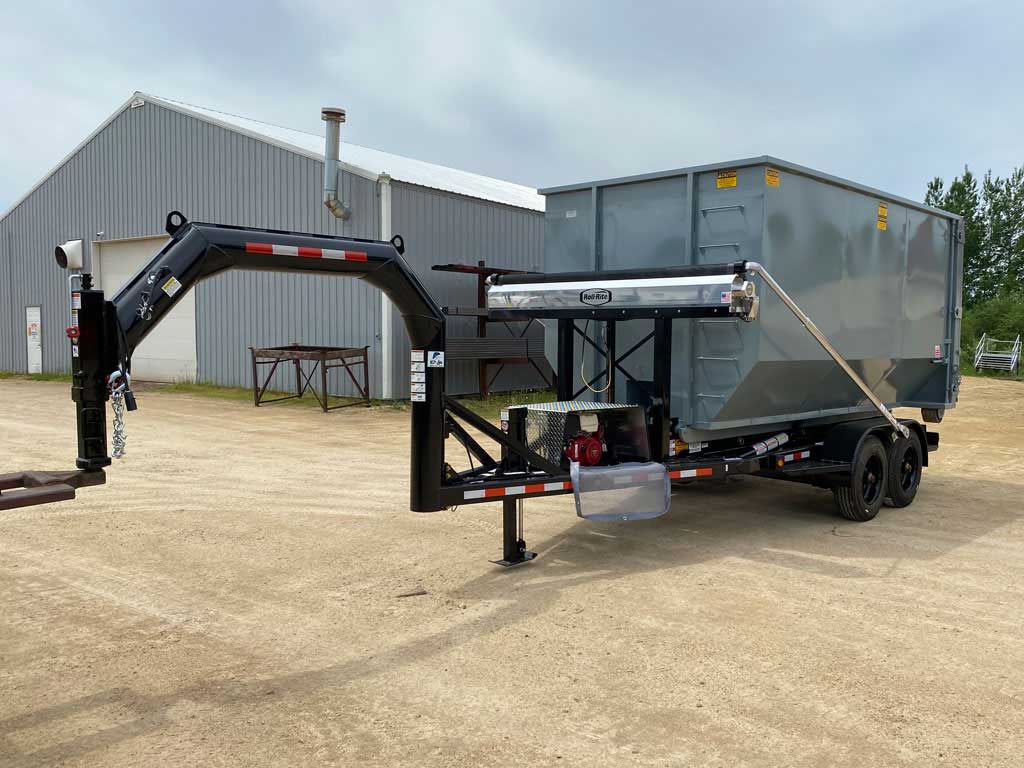

A gooseneck attachment will add 7' to the overall length of your trailer and approximately 750 lbs.
